Prumium Guideway Manufacturer in China
- High Accuracy & Smooth Motion
- Heavy Load & High Rigidity
- Long Maintenance Intervals
- Custom Solutions Available
Get Custom Grades & Fast Quote
Take the advantages
Elvate your beuinesses with us
Our Featured Products
Ball-Type Guideways
Ball-type linear guides are the go-to choice for high-speed, low-friction applications. They utilize spherical steel balls that achieve point contact with the profile rails, making them incredibly agile.
- Best For: Semiconductor manufacturing, medical technology, and high-speed packaging.
- Key Advantage: Exceptionally low rolling resistance and minimal heat generation at high speeds.
- Load Dynamics: Ideal for light to medium loads where rapid straight-line movement is critical.
Roller-Type Guideways
When your application demands extreme rigidity and heavy-duty performance, roller-type guideway blocks are the industry standard. These components replace balls with cylindrical rollers, shifting the mechanics from point contact to line contact. This line contact distributes weights across a larger surface area, allowing CNC machine tools and heavy stamping equipment to maintain absolute precision under massive loads.
Crossed Roller Guideways
For applications requiring ultra-high precision in a compact footprint, crossed roller linear slides offer a specialized solution. The rollers are oriented at alternating 90-degree angles within a machined cage.
- Criss-Cross Design: Alternating rollers handle forces from all directions simultaneously (radial, reverse-radial, and lateral).
- Zero Backlash: Delivers incredibly smooth, tight motion with virtually no play.
- Best For: Precision laboratory instruments, optical positioning stages, and micro-machining equipment where space is at a premium.
Nonlinear and Specialty Guideways
Standard linear motion covers straight lines, but modern industrial automation often requires complex paths. Specialty and nonlinear guideways are engineered for these unique geometric challenges.

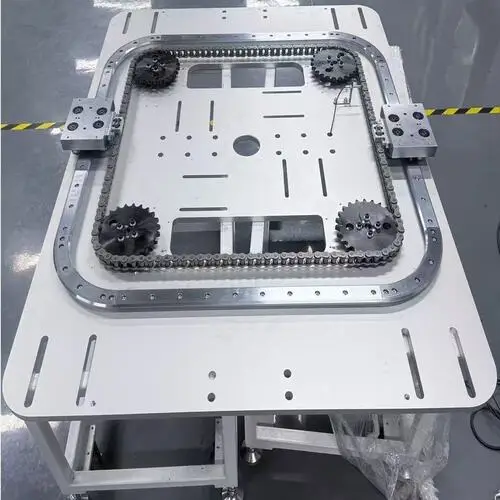

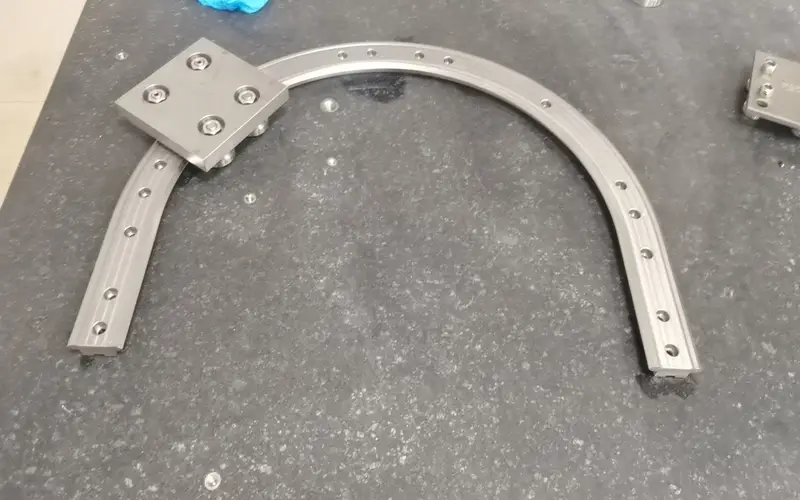

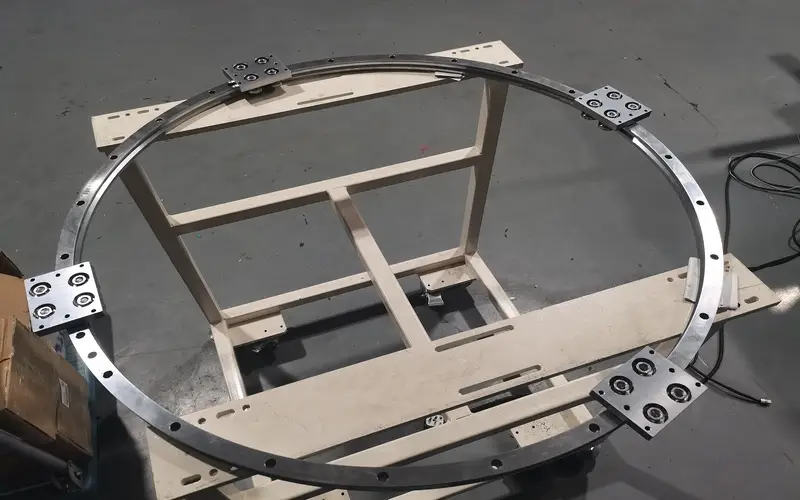

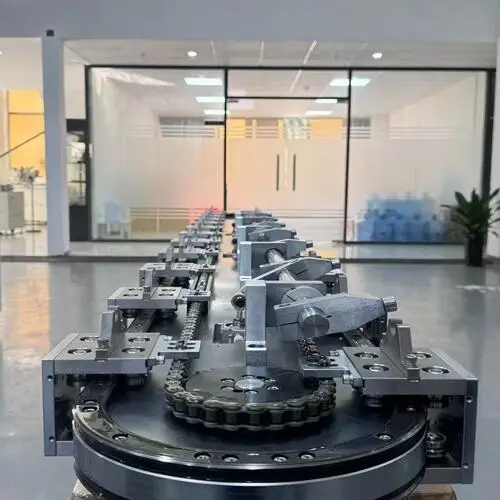

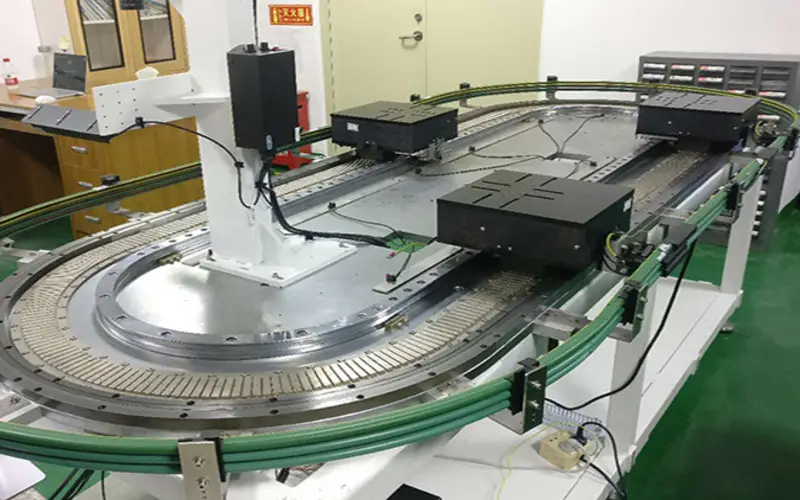

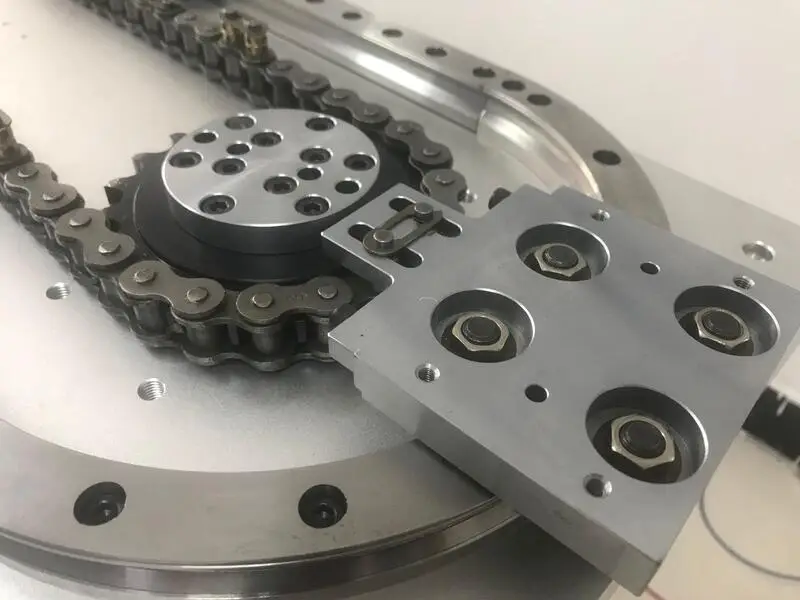

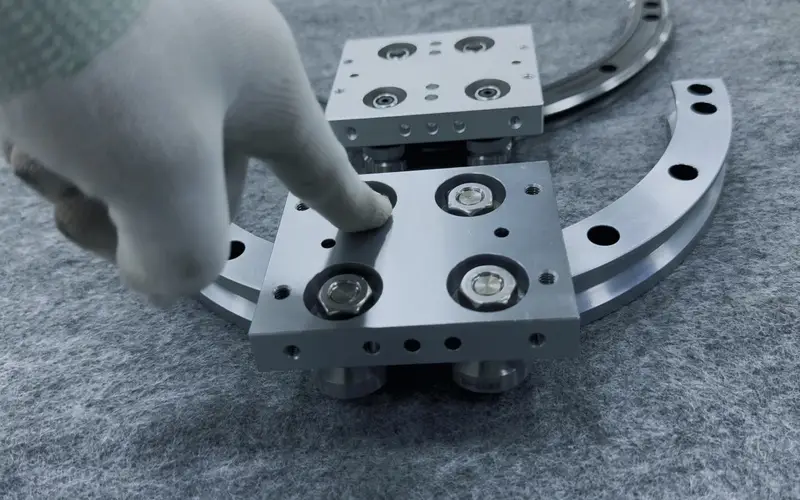

- Curved and Circular Rails: Designed for constant-radius curved paths, ideal for rotary indexing tables and curved conveyor systems.
- Custom Profiles: Tailored geometries for specialized telescopic slides or harsh cleanroom environments.

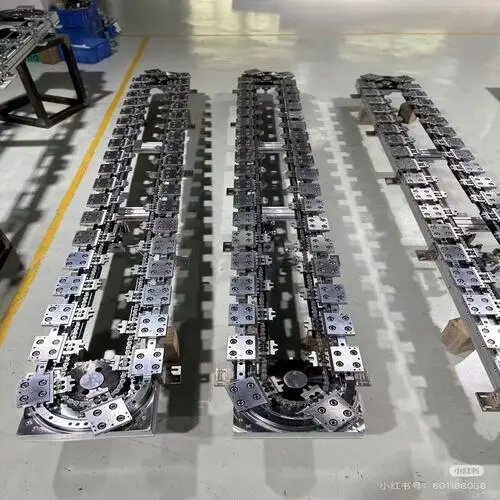

- Multi-Axis Systems: Integrated tracking configurations that combine both linear and rotary motion elements into a single, cohesive chassis.
Our Exclusive Advantages

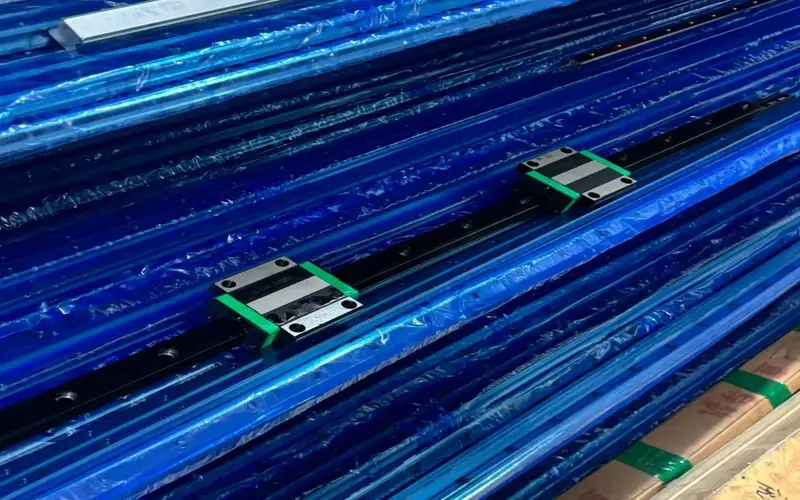

1-Year Warranty
We stand behind every component we produce.
Proven Track Record
Over 2,500 projects completed for global clients.

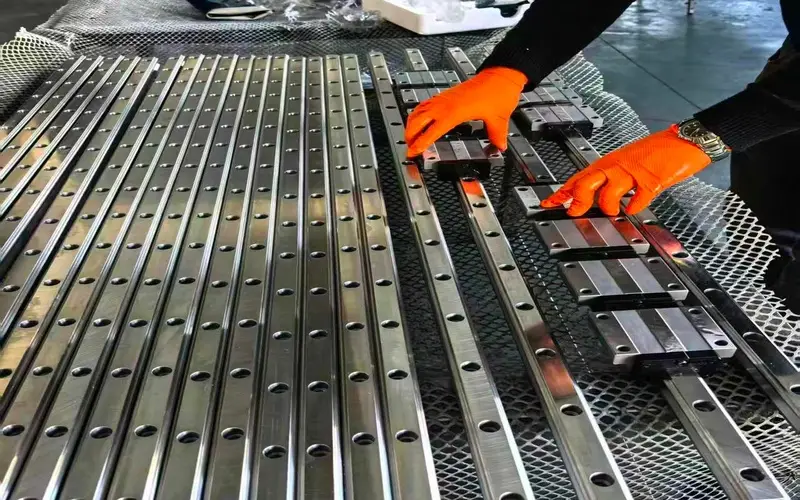

Certified Quality
We use only accredited materials to ensure maximum motor and transformer efficiency.
Quick Response
24-hour availability for technical support and project inquiries.
Get 10% Discount for Your First Order
Save on your next project. We’re offering an exclusive 10% discount on guideway for a short time. Don’t miss these savings!

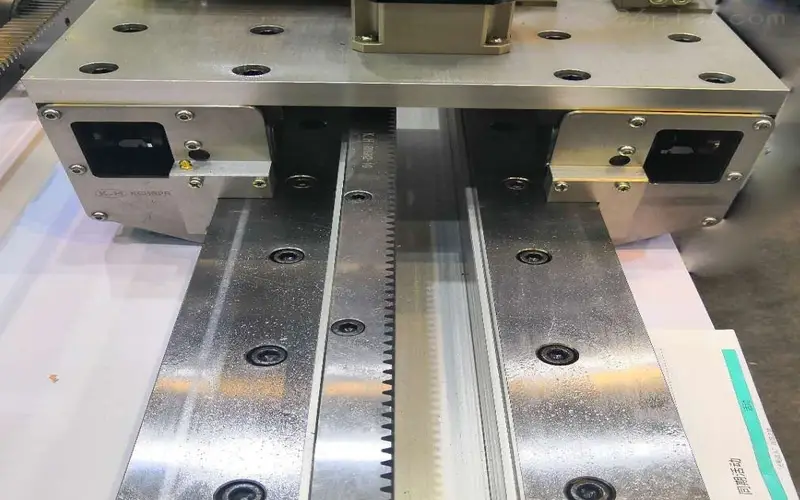

The Guideway Manufacturing and Production Process
As a leading guideway manufacturer, we control every step of our production process to ensure our linear guides deliver peak performance. Building high-quality linear motion systems requires a mix of advanced metallurgy and extreme machining precision.

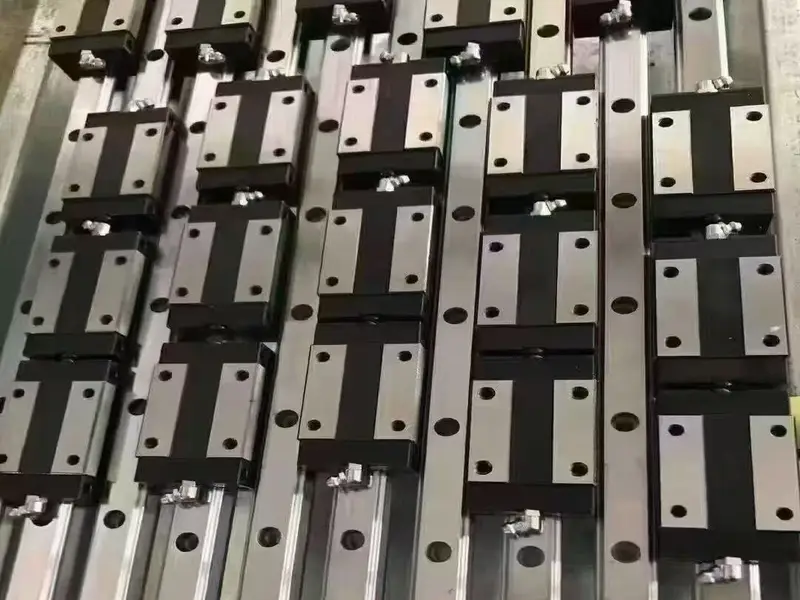

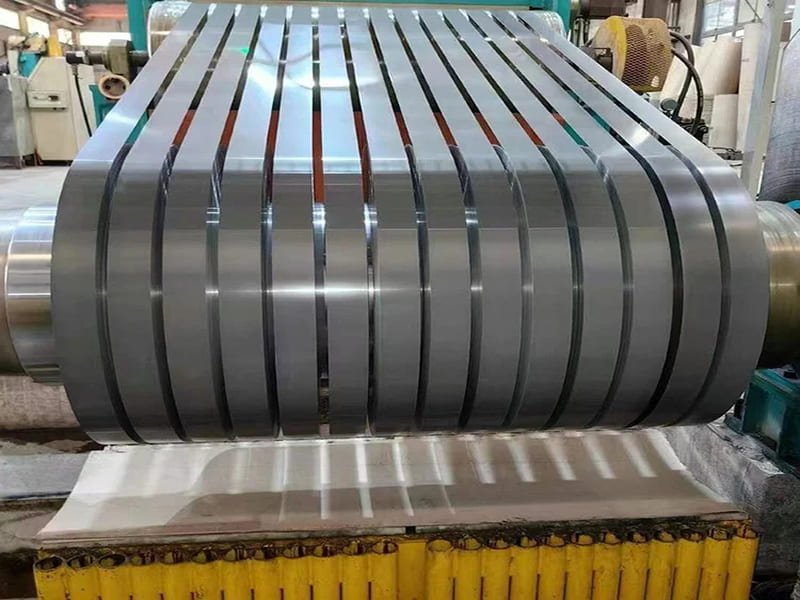

Strategic Material Selection and Alloys
The life of a linear guideway starts with the right raw materials. We source high-grade carbon steels and specialized alloy steels that offer the perfect balance of toughness and wear resistance.
- High-Carbon Chromium Steel: The go-to standard for rails and blocks, offering incredible fatigue life under high load capacity demands.
- Stainless Steel Alloys: Selected for semiconductor manufacturing and medical technology applications where corrosion resistance is critical.
- Custom Alloy Blends: Engineered to handle the intense, repetitive stress of high-speed industrial automation.
Advanced Heat Treatment and Microstructure Engineering
Raw steel cannot survive the friction of continuous straight-line movement without proper hardening. Our heat treatment process transforms the internal microstructure of the steel to maximize durability.
We utilize induction hardening and case hardening technologies to achieve a rock-solid outer shell while maintaining a flexible, shock-absorbing core. This precise thermal processing prevents the profile rails from cracking under sudden impacts or heavy machining forces in CNC machine applications.
Ultra-Precision Grinding and Surface Finishing
To achieve zero backlash and smooth linear motion, the raceways of our carriage blocks and rails must be flawlessly smooth.
- State-of-the-Art CNC Grinders: We grind the ball tracks to sub-micron tolerances.
- Surface Finishing: Super-finishing processes eliminate microscopic peaks, drastically reducing friction.
- Geometric Accuracy: Perfect parallelism ensures consistent travel accuracy across the entire length of the guideway.
| Preload Type | Rigidity Level | Ideal Application |
|---|---|---|
| Light Preload | Standard Rigidity | Material handling, smooth automation, low friction |
| Medium Preload | High Rigidity | Precision CNC machine tools, stable linear slides |
| Heavy Preload | Maximum Rigidity | Heavy-duty cutting, high vibration environments |
Preload Mechanics and Precision Assembly
The final stage of our production process brings the components together into a high-performance machine element. Assembly is performed in climate-controlled cleanrooms to prevent contamination.
We carefully select and sort the internal bearings (balls or rollers) to achieve the exact preload mechanics required by our global customers.
By matching the perfect block carriage with the right profile rail, we deliver ready-to-install linear guides that balance smooth rolling with maximum rigidity.
Key Characteristics and Performance Advantages of Our Guideway

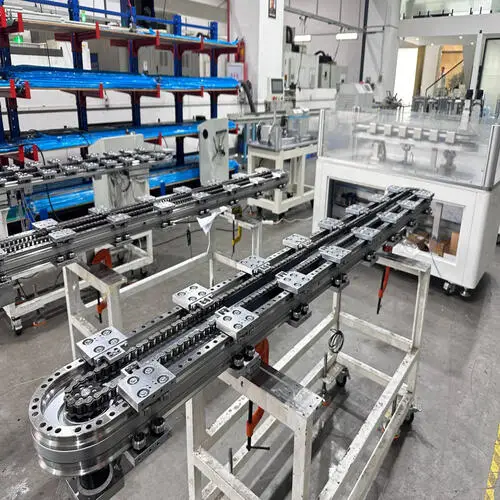

High Rigidity and Load Capacity
Built for heavy-duty applications, our linear guides deliver high load capacity, structural stiffness, and precise, stable motion.
Speed, Acceleration, and Travel Accuracy
Fast, smooth, and precise linear motion for reduced cycle times, reliable performance, and high-accuracy automation.
Friction Reduction and Zero Backlash
Engineered for smooth, play-free movement, our guideways reduce energy consumption while delivering exceptional accuracy and repeatability.
Applications
Industrial Applications of Precision Guideways

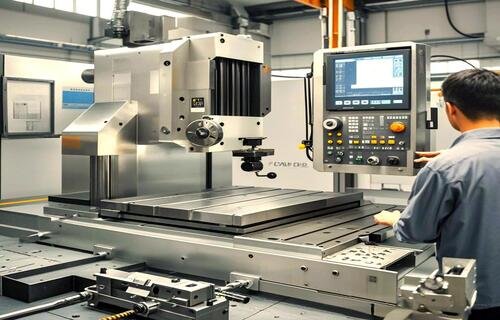

CNC Machine Tools and Heavy Machining
High-performance CNC machines rely heavily on the rigidity and high load capacity of profile rails to maintain accuracy under intense cutting forces.
- Heavy-Duty Milling and Turning: Our blocks and rails absorb massive vibrations during heavy material removal, preventing tool chatter.
- High Travel Accuracy: They ensure repeatable, micron-level straight-line movement for complex mold and die machining.
- Structural Rigidity: Reduces deformation under load, directly extending cutting tool life.

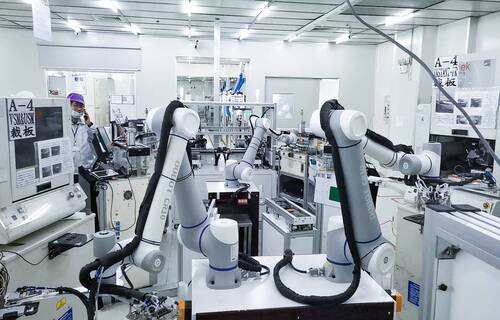

Advanced Automation and Robotics
In fast-paced factory automation, speed, acceleration, and weight capacity dictate throughput.
- Industrial Automation: Linear slides drive pick-and-place robots, packaging lines, and multi-axis gantry systems.
- Semiconductor Manufacturing: Offers friction reduction and smooth travel needed for fragile wafer handling and inspection systems.
- Medical Technology: Provides quiet, reliable, and smooth low-friction positioning for advanced scanning and diagnostic machinery.

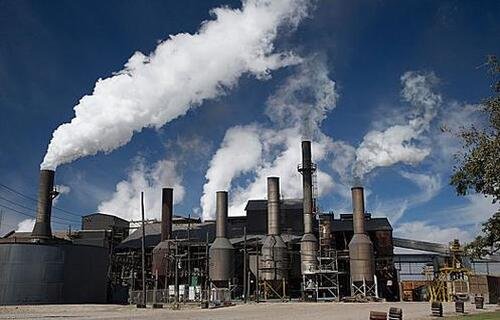

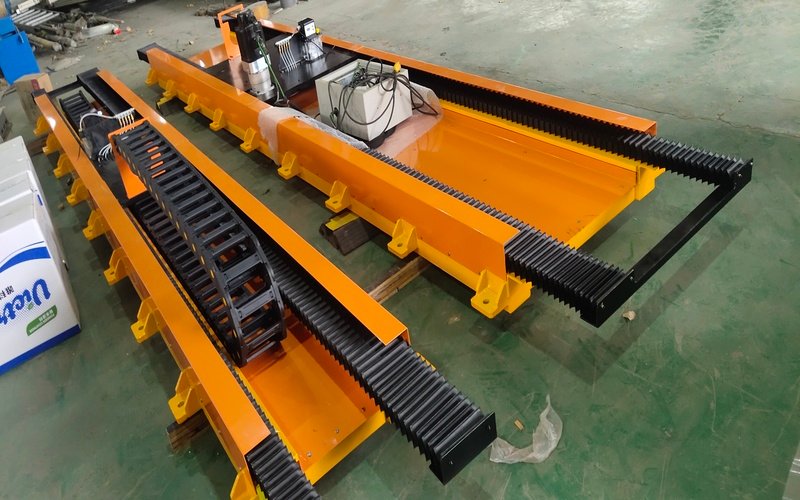

Harsh and Contaminated Production Environments
Standard mechanical engineering components fail when exposed to debris. We build specialized guideway configurations to survive the toughest shop floors.
✔ Enhanced Environmental Protection
✔ Continuous Lubrication System
✔ Long-Term Operational Stability
Additional Services

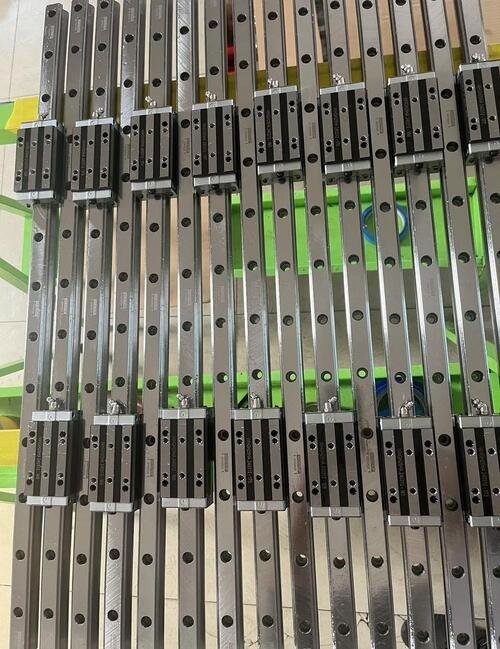

Select the Right Guideway for Your Production
Choosing the right linear guideway ensures your machines run smoothly, last longer, and deliver precision parts. As a premier guideway manufacturer, we understand that picking the perfect profile rails and blocks depends entirely on your specific machine setup.
- Match Guideway Capacity to Material Cutting Forces and Load Requirements.
- Balance Speed, Rigidity, and Precision for Optimal Machine Performance.
- Optimize Rail Size and Load Ratings to Prevent System Failure.
- Select Proper Preload and Accuracy Grades for Consistent Motion Control.

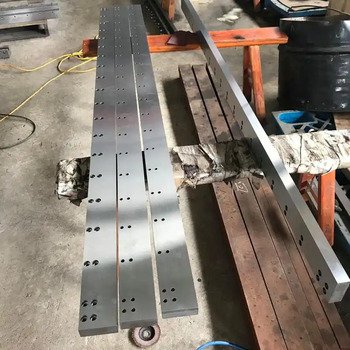

Successful Cases and Happy Customers

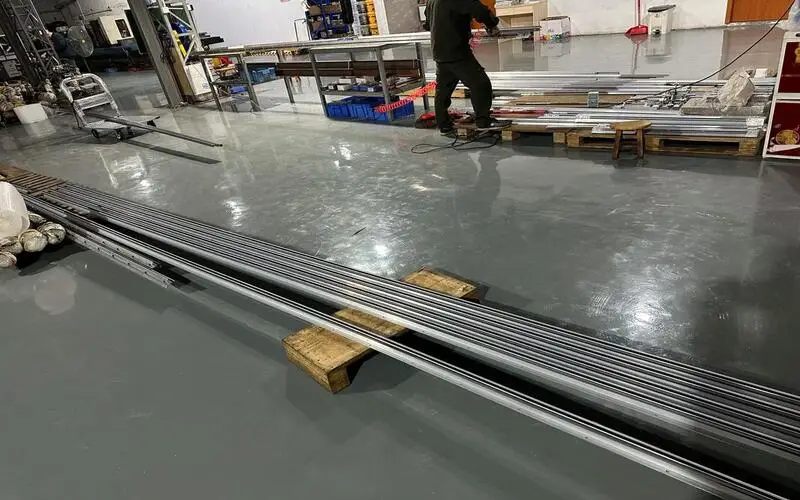

A View of Our Factory
